Understanding Surveillance Camera Types

Surveillance cameras come in many shapes and styles, and each design suits particular needs — from visible deterrence to discreet monitoring, from wide-area coverage to simple indoor observation. Knowing the differences helps you match a camera to your space and goals.

Bullet Security Camera Icon

1. Bullet Cameras

What they are: These cameras have a long, cylindrical shape — like a bullet or small tube — and are among the most recognizable surveillance cameras.

Best for:

  • Outdoor areas
  • Long distance viewing (driveways, backyards)
  • Deterrence (their visibility can discourage intruders)

Why people like them:

  • Clear, narrow-focus footage
  • Often weather-proof and rugged
  • Easy to point at a specific zone

Downsides:

  • Stand-out design might not blend with decor
  • Manual angle adjustment on most models
Dome Security Camera Icon

2. Dome Cameras

What they are: These cameras are enclosed in a dome-shaped housing. That rounded cover helps protect the lens and makes it harder for people to tell which way the camera is pointing.

Best for:

  • Indoor spaces like lobbies, hallways, and retail areas
  • Places where a discreet look matters
  • Monitoring wide zones

Why people like them:

  • Less noticeable
  • Often vandal-resistant (especially outdoor models)
  • Broad field of view

Downsides:

  • Can be harder to install
  • Some cheaper domes can suffer from IR reflection inside the dome at night
Turret Security Camera Icon

3. Turret (Eyeball) Cameras

What they are: Also called “eyeball” cameras, turret cameras have a ball-and-socket design that allows for easier adjustment of viewing angle after installation.

Best for:

  • Flexible placement indoors or outdoors
  • Areas needing adjustable coverage without complex mounts

Why people like them:

  • No dome cover — less reflection and cleaner night images
  • Easier to aim and adjust
  • Sleek but still noticeable presence

Downsides:

  • Not as discreet as dome cameras
  • Slightly more exposed to weather on outdoor installs
PTZ Security Camera Icon

4. PTZ (Pan-Tilt-Zoom) Cameras

What they are: PTZ cameras can move: pan left and right, tilt up and down, and zoom in on details. These are more advanced surveillance tools.

Best for:

  • Large, open areas
  • Situations where live operators want to track action
  • Monitoring zones with changing activity

Why people like them:

  • Active remote control and automated tracking
  • Can cover large zones with one camera
  • Great for commercial or high-security settings

Downsides:

  • More expensive
  • Often require more advanced setup and management
IP Bullet Camera Icon

5. Indoor vs Outdoor Cameras

Indoor cameras
tend to be compact, lightweight, and designed for enclosed areas like living rooms, offices, or reception areas.

Outdoor cameras
are built to endure weather, bright sun, rain, snow, and temperature swings. Some cameras are built for both with durable housing and night vision.

IP Bullet Camera Icon

6. Wired vs Wireless

Wired cameras (Ethernet or coax for video, usually hardwired power)
connect via cables for power and video, giving stable performance but require more installation effort.

  • Pros
    • More reliable connection
      Video doesn’t depend on Wi-Fi strength, which means fewer dropouts and smoother playback.

    • Better for 24/7 recording
      Ideal for continuous recording systems using an NVR or DVR.

    • Higher and more consistent video quality
      Handles high resolutions (4K and beyond) without compression or lag.

    • No batteries to manage
      Once installed, there’s no need to recharge or replace batteries.

    • More secure by default
      Less exposure to Wi-Fi hacking or interference.

Wireless cameras (Wi-Fi for video, battery or plug-in power)
connect over Wi-Fi and often run on battery or a power cable — easier to set up and relocate, but dependent on network strength.

  • Pros
    • Easier to install
      Often designed for DIY setup with minimal tools.

    • Lower upfront cost
      Ideal for smaller setups or single-camera needs.

IP Bullet Camera Icon

7. Technology (Infrared & Special Features)

Beyond basic shapes like bullet or dome, modern surveillance cameras use advanced imaging technologies to boost performance in low-light conditions and deliver actionable footage — especially at night.

NightVue, NightColor, and NightLight are three specific enhancements designed to improve nighttime imaging:

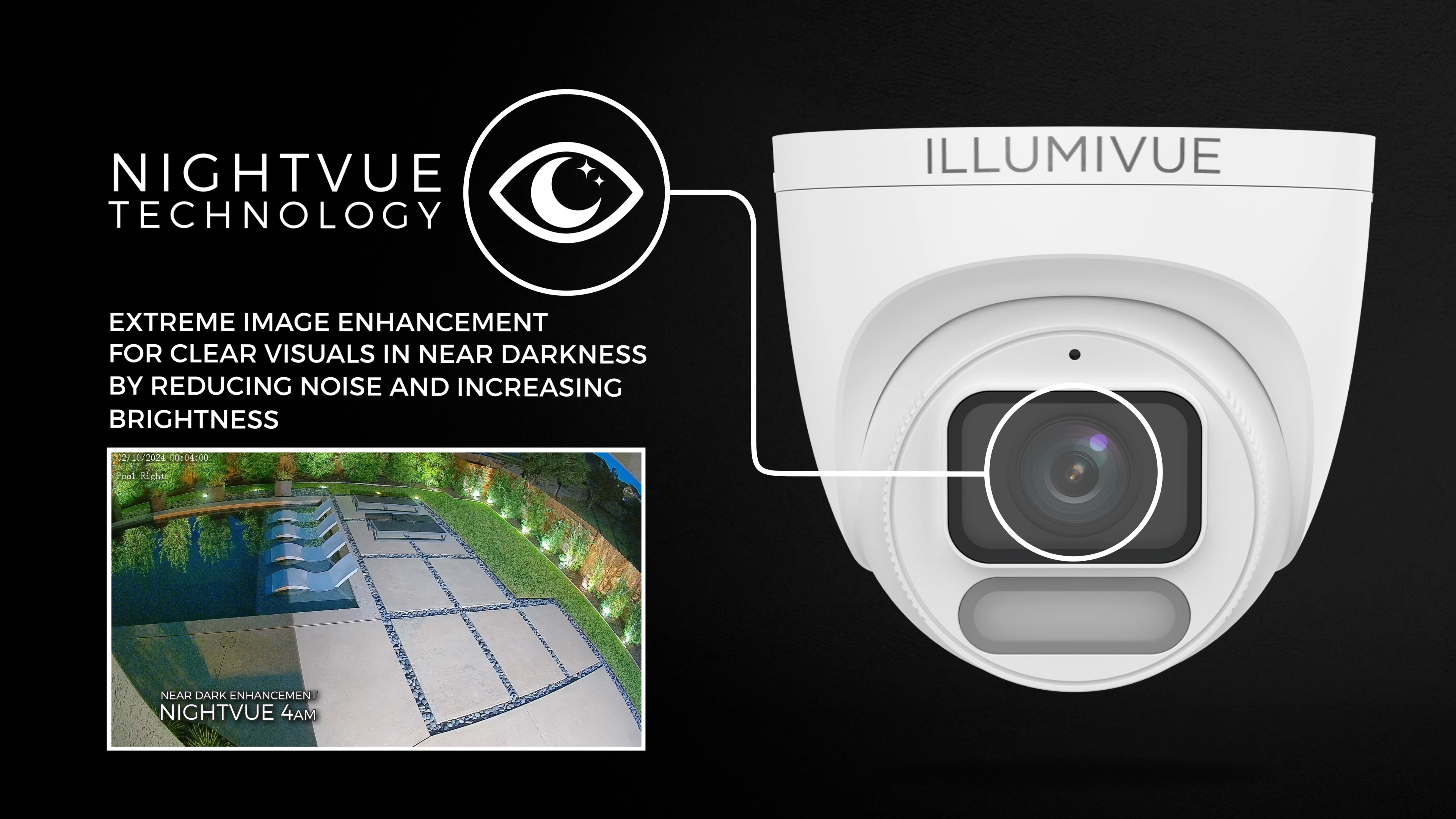

  • NightVue delivers enhanced visibility in very low light by intelligently increasing brightness and reducing noise, helping produce clearer footage when traditional infrared struggles. MSTR Brand

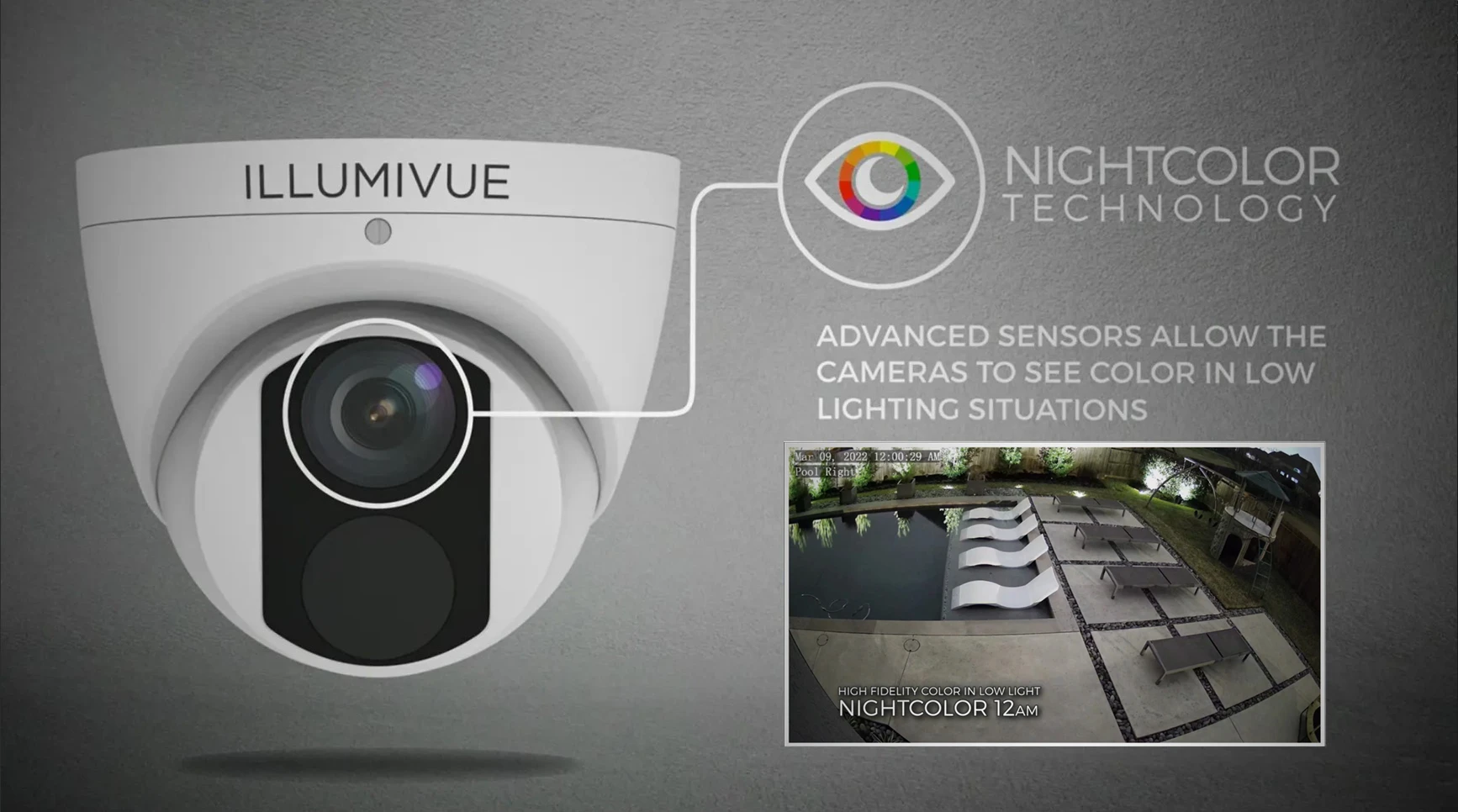

  • NightColor extends this further by capturing color video in ultra-low light, which can make it easier to identify details like clothing or vehicle color after dusk. MSTR Brand

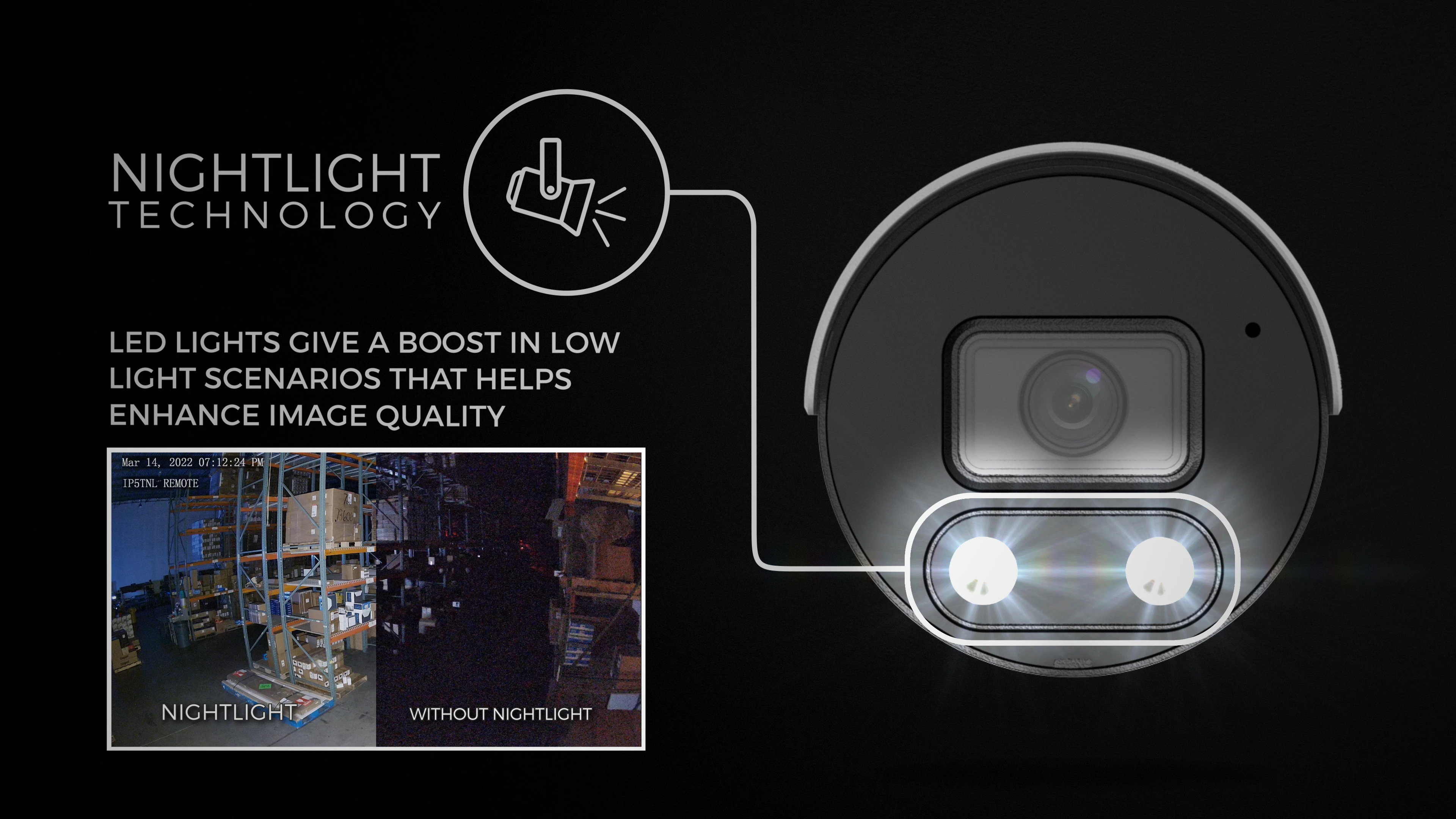

  • NightLight adds built-in LED lighting and a larger aperture to brighten scenes in near darkness. This not only improves image quality but also provides a built-in deterrent, making well-lit areas less attractive to would-be intruders. MSTR Brand

NightVue | Illumivue NightColor | Illumivue NightLight | Illumivue

These enhancements go beyond classic infrared (IR) night vision, which typically produces monochrome footage using IR illumination when visible light is absent.

Together, advanced night-vision variants and specialty types let you tailor your surveillance system to your property’s specific coverage and lighting needs.


IP Bullet Camera Icon

Choosing What’s Right for You

When deciding, consider:

  • Where will the camera be installed? Indoor, outdoor, or both?

  • What do you need to see? A wide area, a doorway, a long walkway?

  • Do you want deterrence or discretion? A visible camera may deter, while a subtle one blends in.

  • How will you monitor it? Live feed on your phone, stored recordings, or professional monitoring?

Each type has strengths — and mixing types across a property often yields the best overall coverage.
